Paintings Hang.
Never Folded.

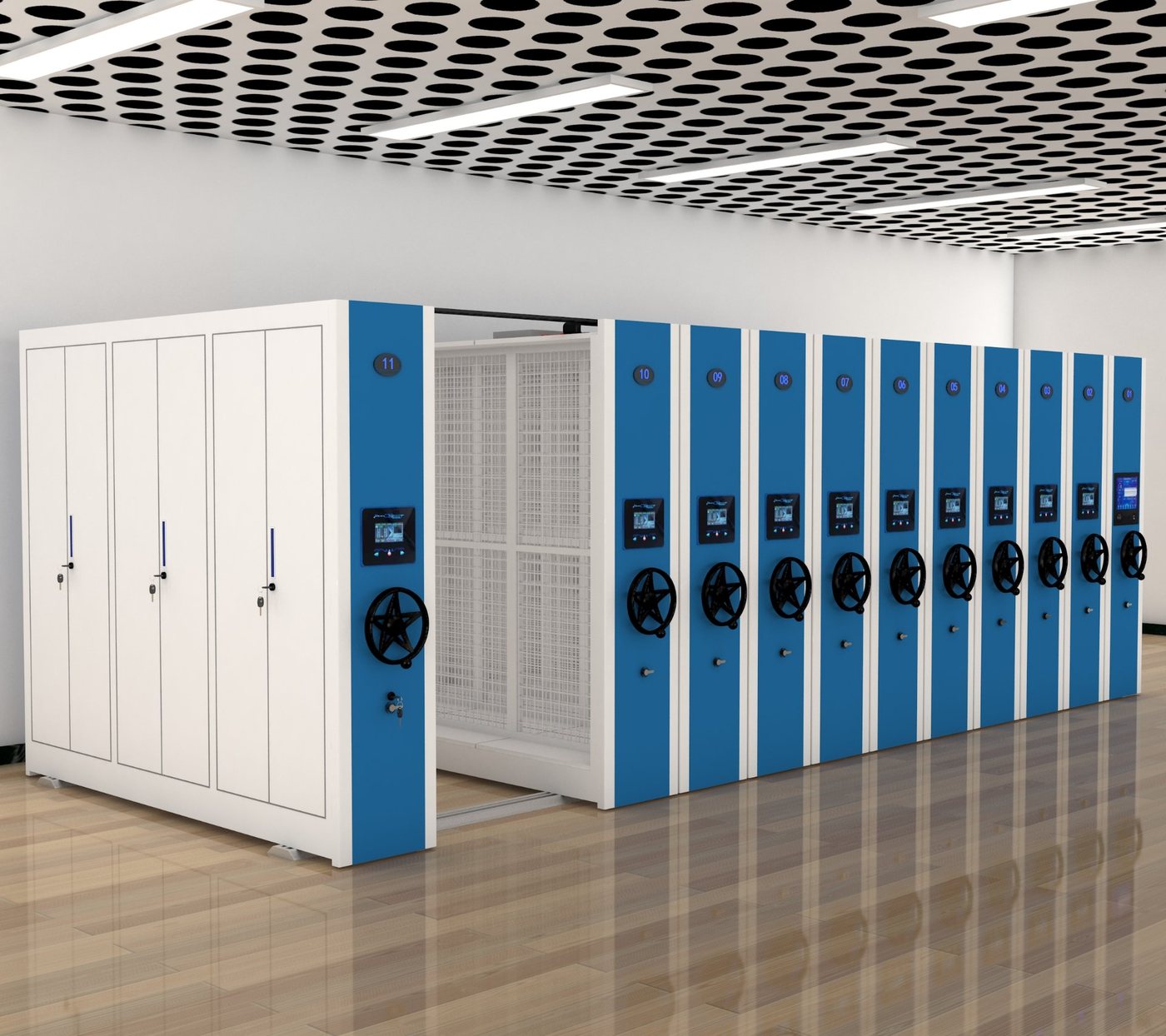

GH-01 is a mobile carrier system for paintings, calligraphy scrolls, mounting boards and drawings. Works hang vertically from wire-mesh carriers and are held apart by adjustable rods, so nothing is folded, stacked or pressed against another surface.
Four Numbers We
Publish On Every Quote.
- 99 %UV BLOCKEDLight-seal brush gaskets and closed panels block UV once the run is closed.
- 45–55 %RELATIVE HUMIDITYDesign storage window; the humidity module holds ±5 % RH across a ±2 °C band.
- 3–5 ×SPACE EFFICIENCYMeasured against fixed racking and flat plan chests on the same footprint.
- 2,000 kgPER CARRIER ROWRated row load; an individual divider rod carries up to 40 kg of hung work.
Three Sites,
Three Real Outcomes.
Provincial Art Museum
Moved an oil-painting collection off flat plan chests into hanging carriers. Retrieval time per work fell from about fifteen minutes to under four, with no surface contact during handling.
- 96carriers
- −75 %retrieval time
- 3,000works stored
Auction House Vault
A pre-sale store that has to go up and come down inside days. Carriers run on a surface-mounted rail, so a temporary viewing vault is built without cutting the floor.
- 38carriers
- 2 daysbuild & strike
- 0surface marks
Fine Arts Faculty Collection
A teaching collection of drawings, prints and scrolls in a humid southern city. The constant-humidity module and light seal keep the store inside the 45–55 % RH window through the summer.
- 64carriers
- 45–55 %RH held
- 2 yrin service
Four Values The Room
Has To Hold.
Six Checks We Sign
Before The Truck Leaves.
- Mesh tensionCarrier mesh tensioned and checked against the carrier frame
- Powder coat60–80 μm film; cross-hatch adhesion not below grade 2
- Rod spacingDivider rods set to the artwork schedule and locked in their slots
- Light sealBrush gasket checked the full length of the closing edge for a gapless seal
- Humidity moduleSensor calibrated and logged against a reference meter before handover
- Rail levelRail parallel within 1 mm/m, with no step or rock at carrier transfer

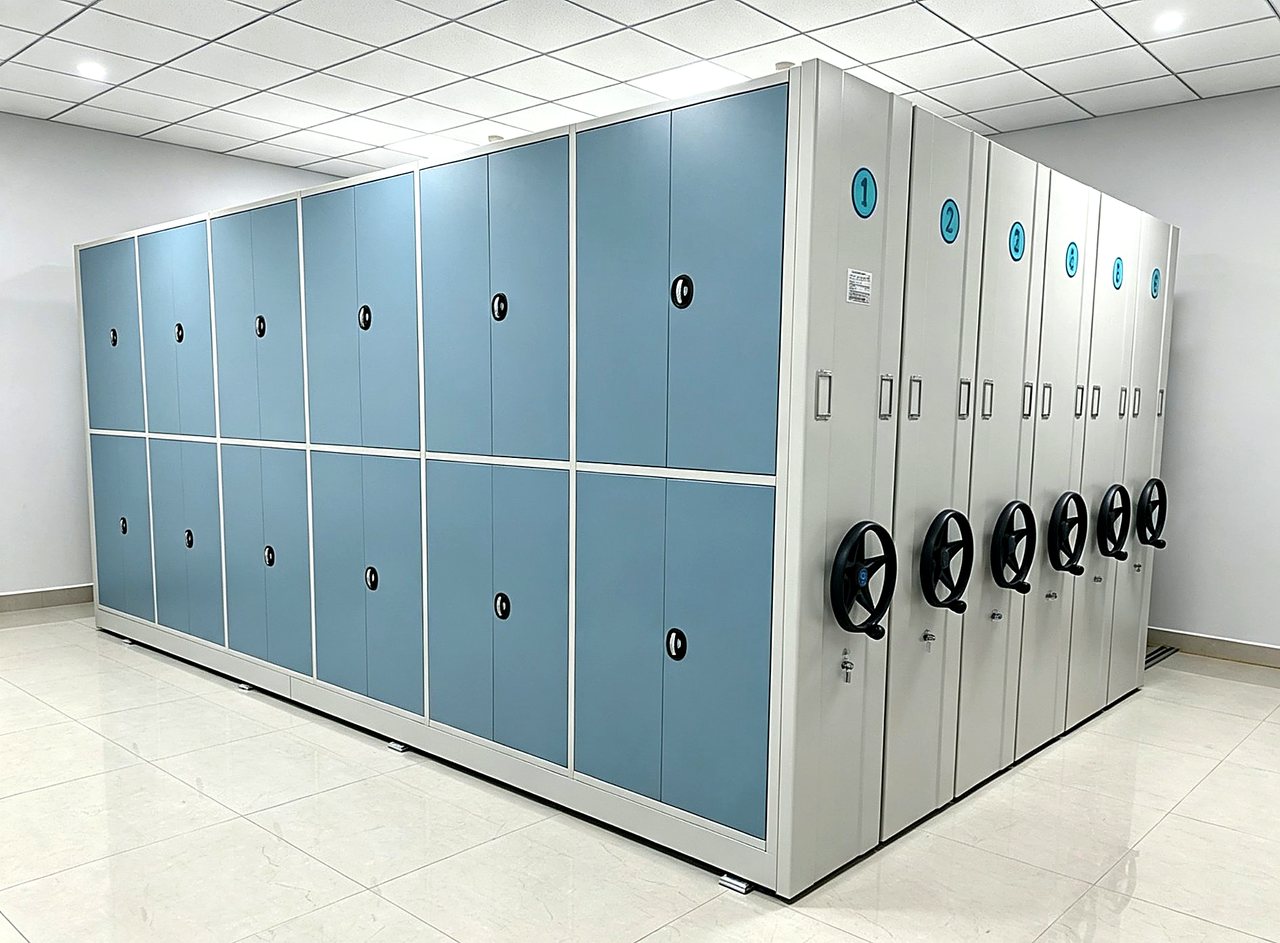

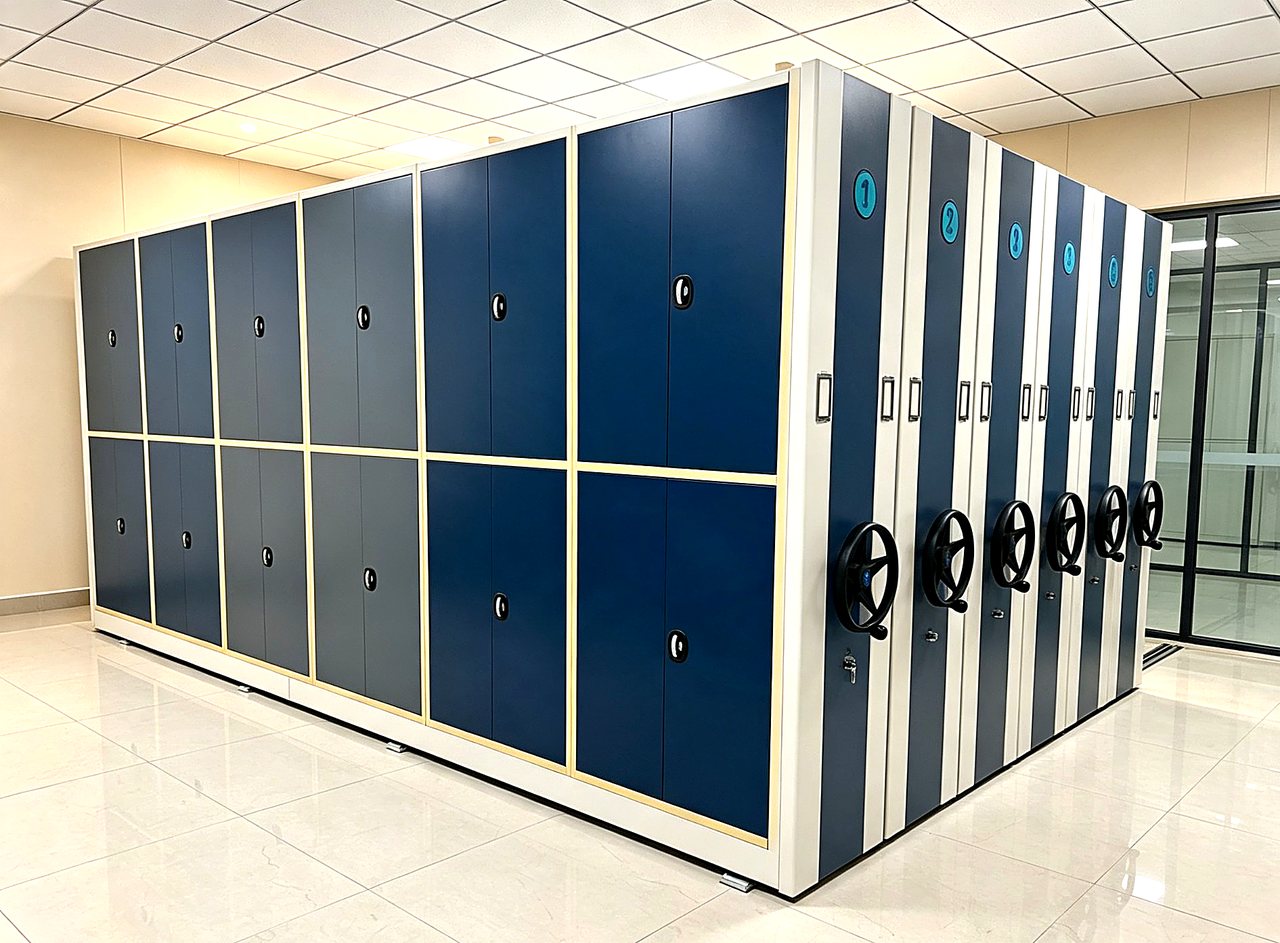

Any Colour,
One Standard.
Custom colour programs run on the same powder line as the standard range – send a brand swatch or wall colour and the bays are batch-matched.
Give The Collection Room To Breathe.
Send your artwork schedule (sizes and quantities), room dimensions and target humidity. We return a carrier layout, a hanging plan and a factory-direct quotation within 24 hours.
